Door Frame Fixing Anchor (KWIK KDF-PRO)

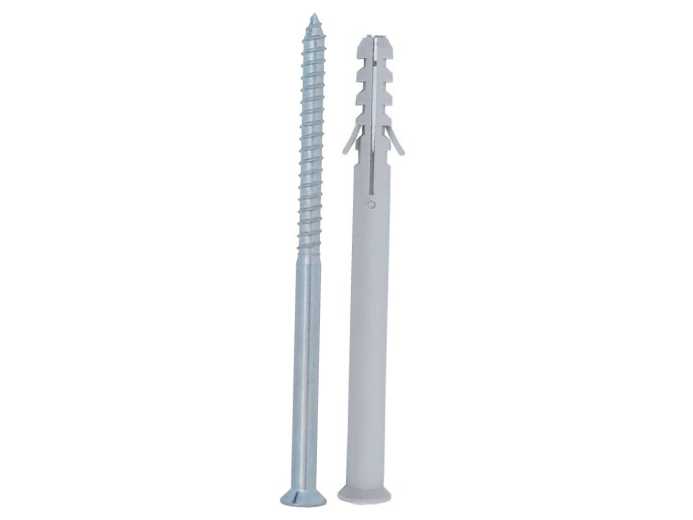

KWIK KDF-PRO - Door Frame Fixing Anchor (Economical Version)

Anchor for Frame Fixings in RCC, PCC, Aerated Blocks & Clay Bricks. Flexible High Quality Nylon. Excellent Keying & Friction. Optimal Expansion with wings that prevent rotation & slipping in the hole.

Door frame fixing with countersunk head and zinc plated screw for fixing wooden structures.

Used commonly for fixing wooden door & window frames, safety grills & railings etc.

service-img
  • Economical Door Frame Fixing : Economical yet appropriate solution to avoid usage of conventional hold fasts / nails.
  • Controlled Expansion : Creates groove in the plug & ensures correct positioning.
  • Wide Range of Fixing Thicknesses : battens, where high load values are required.

KWIK KDF-PRO is an Economical Nylon Anchor ideal for Door Frame Fixing. Usually these anchors are best suited for budget housing projects / rehabilitation projects. It has better load bearing capacity than the conventional hold fasts / nails. Higher fixture thicknesses can be accommodated by longer length anchors & can be fixed on all base materials like concrete, hollow & solid materials. With the special anchor design, the screw creates a controlled expansion of the plugs by creating groove in the internal profile. It have high fixing thickness for fixings up to 100mm & also for small fixing thickness. Ideal for the fixing of battens, where high load values are required.

  • High performance
  • Countersunk Head
  • Anti-rotation Plug
  • Maximum Versatility
  • Low Torque needed during expansion
  • High resistance in lesser embedment depth
  • Door & Window Frames
  • HVAC Applications
  • Wall Clamps
  • Safety Grills & Railings
  • Plumbing Fixings
  • UPVC Door & Windows
  • Tested in wide range of Base Materials
  • Can also be fixed by hand
  • Excellent Keying & Friction
  • Guaranteed Safety
  • Optimal expansion is guaranteed preventing rotation & slipping in the hole
  • Concrete (RCC & PCC)
  • Solid Stone
  • Autoclave Aerated Concrete (AAC) Blocks
  • Clay Bricks
  • Hollow Blocks

KDF-PRO – Door Frame Fixing Anchor (White Zinc Plated)

SR. No. Product Description Anchor Dia. Fastenable Thikness-tfix Embedment Depth-hef Total Length Box Qty.
(mm) (mm) (mm) (mm)
1. KPS-FAST M8x80 M8 25 45 80 100
2. KPS-FAST M8x100 M8 45 45 100 100
3. KPS-FAST M8x120 M8 65 45 120 100
4. KPS-FAST M8x140 M8 85 45 140 100
5. KPS-FAST M10x80 M10 20 45 80 100
6. KPS-FAST M10x100 M10 40 45 100 100
7. KPS-FAST M10x120 M10 60 45 120 100
8. KPS-FAST M10x140 M10 80 45 140 100
9. KPS-FAST M10x160 M10 100 45 160 100
