Nylon Anchoring System

Available in Following Sizes
Product Brochure.PDF

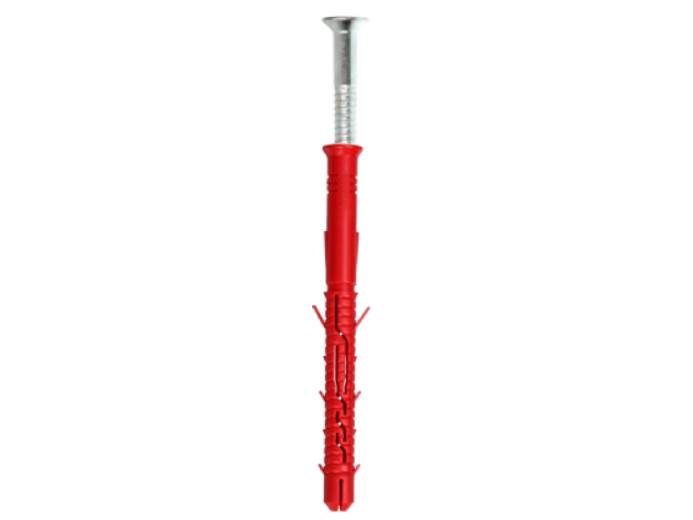

Universal Frame Fixing Anchor (KWIK KPS-FAST)

European technical approval according to ETAG 020 & CE Certified

Fire Resistance approval of minimum 90 minutes.

Works excellent in Light Aerated Blocks & Clay Bricks.

Ultra Flexible High Quality Nylon (Polyamide PA6).

High Tensile Countersunk Screw (Carbon Steel 8.8 Grade)

Higher Load Values for installations in weaker base material.

Innovative, Variable Geometry with 6 major & 6 minor Wings generate frictional resistance against the base material with excellent Keying & Friction.

Universal frame fixing with countersunk head and zinc plated screw for fixing wooden structures.

Rotary protection and strengthened contour for optimal fastening values in concrete and solid masonry.

Used commonly for fixing wooden door & window frames, wet & dry wall clamps, all façade applications, safety grills & railings etc.

service-img
  • Excellent Performance : The internal & external design generates increased expansion.
  • Controlled Expansion : Creates groove in the plug & ensures correct positioning.
  • Fire Resistance : Fire resistance class = R90
  • Greater Grip : Innovative variable geometry. 4-way expansion.

KWIK KPS-FAST is Nylon Anchor ideal for Frame Fixing on RCC, PCC or AAC. It is a universal frame fixing anchor where the same anchor is suitable for multi applications for fixings on harder or weaker base materials. During the application, the screw gives a controlled expansion of the plug with the desired position in the drilled hole as it creates groove inside the plug. It have high resistance with wider screw diameter and thicker thread enhances the performances. The unique anchor design is tried, tested & proven on fixings getting subjected to higher wind velocities on high rise constructions.

  • European technical approval according to ETAG 020 & CE Certified.
  • Fire Resistance approval of minimum 90 minutes.
  • Innovative, Variable Geometry with 6 major & 6 minor wings generate frictional resistance against the base material with excellent Keying & Friction.
  • Universal frame fixing with countersunk head and zinc plated screw for fixing wooden structures.
  • Rotary protection and strengthened contour for optimal fastening values in concrete and solid masonry.
  • Ultra Flexible High Quality Nylon (Polyamide PA6).
  • High Tensile Countersunk Screw (Carbon Steel 8.8 Grade)
  • Higher Load Values for installations in weaker base material
  • All Facade Applications
  • Stone Cladding Clamps
  • Door & Window Frames
  • Kitchen Cabinets
  • Wall Clamps
  • Safety Grills & Railings
  • Plumbing Fixings
  • HVAC Applications
  • Fire Rated Doors / Windows
  • UPVC Door & Windows
  • Speed Brakers / Rumblers fixings
  • Tested in wide range of Base Materials
  • Ultra Flexibile
  • Can also be fixed by hand
  • Excellent Keying & Friction
  • Fire Resistant upto 90 minutes
  • Guaranteed Safety
  • Optimal expansion is guaranteed preventing rotation & slipping in the hole
  • Concrete (RCC & PCC)
  • Solid Stone
  • Autoclave Aerated Concrete (AAC) Blocks
  • Clay Bricks
  • Hollow Blocks

KPS-FAST – Universal Frame Fixing Anchor (White Zinc Plated)

SR. No. Product Description Anchor Dia. Fastenable Thikness-tfix Embedment Depth-hef Total Length Box Qty.
(mm) (mm) (mm) (mm)
1. KPS-FAST M10x80 M10 10 70 80 100
2. KPS-FAST M10x100 M10 30 70 100 100
3. KPS-FAST M10x120 M10 50 70 120 100
4. KPS-FAST M10x140 M10 70 70 140 100
5. KPS-FAST M10x160 M10 90 70 160 100
