- Cone Expansion : Keying & Friction Principle
- Shallow Embedment Depth : Less risk of hitting reinforcement
- Uniform Expansion : The special clip ensures an uniform distribution of pressure in the drilled hole

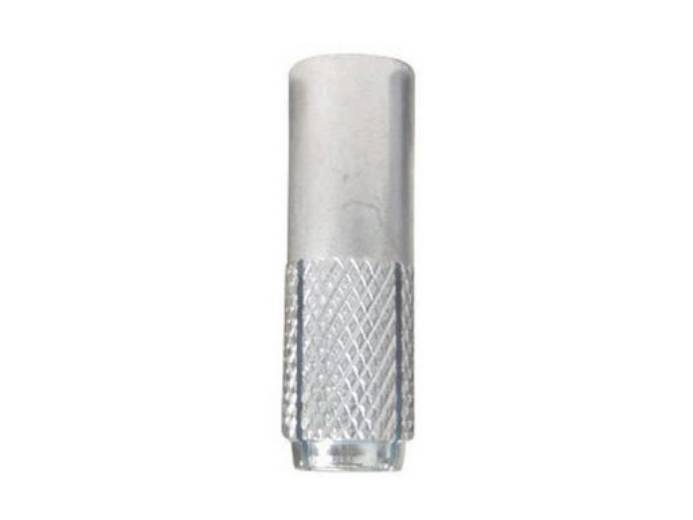

Drop-In Anchor / Hammerset Anchor (KWIK KDM-PRO)
KWIK KDM-PRO anchor is also known as Bullet Anchor, Drop In Anchor or Flush Anchor. This anchor is best suitable for medium duty loading.
KWIK KDM-PRO anchor is also suitable in Dense reinforcement areas as it only goes into the Cover of the Structure. It’s best feature on expansion upon hammering the bullet helps in forming the best friction principle and holding the best in concrete with help of knurling on the expansion zone
- Metric internal thread
- Standard setting tools
- Depth of embedment
- Flush with base material
- Sprinkler systems
- Gratings
- HVAC Fixings
- Cable Trays
- False Ceiling
- Raised floorings
- Scaffolding Props
- Medium duty steel constructions
- Wooden Battens
- Suspended Ceiling
- Electrical Service
- Hand rails and Supports
- Pipe line and Ventilations
- Standard Screws & threaded rods
- Prevents damage of internal thread
- Shallow drilling depth
- Minimises external interference
- Solid Stone
- Concrete
| SR. No. | Product Description | Anchor Dia. | Embedment Depth- hef | Total Length | Box Qty. |
|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | |||
| 1. | KDM-PRO M6x25 (Outer Dia. = 8mm) |
M6 | 25 | 25 | 100 |
| 2. | KDM-PRO M8x30 (Outer Dia. = 10mm) |
M8 | 30 | 30 | 100 |
| 3. | KDM-PRO M10x40 (Outer Dia. = 12mm) |
M10 | 40 | 40 | 100 |
| 4. | KDM-PRO M12x50 (Outer Dia. = 16mm) |
M12 | 50 | 50 | 50 |
| 5. | KDM-PRO M16x65 (Outer Dia. = 20mm)M16 |
65 | 65 | 25 |
