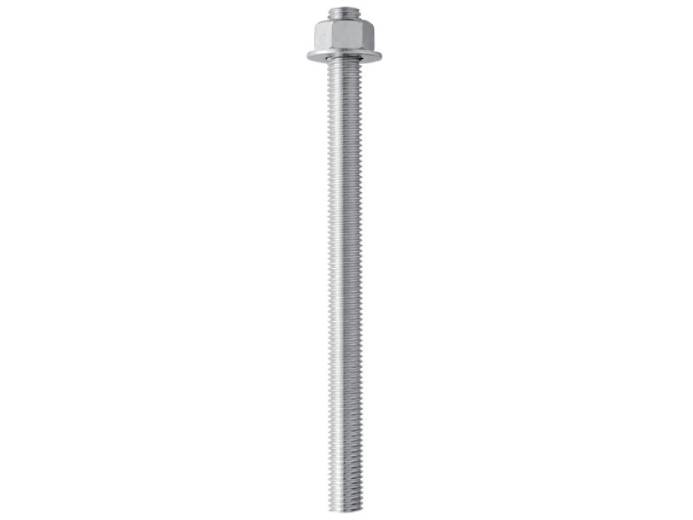

Threaded Anchor Rods - (KWIK KTR)

High Tensile Threaded Anchor Rods Zinc Plated upto 8μ.

Available in Carbon Steel 5.8Grade, 8.8 Grade, 10.9 Grade & also in Stainless Steel A2/SS304 & A4/SS316 versions.

Available in Diameter starting from M8 to M39 & lengths ranging from 85mm to 1000mm & more in all grades.

Design Support available for optimization of Chemical Anchoring with KTR’s.

Ideal for fixings in Beams & Columns, Pipe Supports, Mechanical Equipments, Guard Rails, Gates, Insert Plates, Through & Through Anchoring, etc.

service-img
  • Consistent Pitch Diameter : Uniform thread pitch
  • Grades Available : 5.8Gr., 8.8Gr., 10.9Gr., B7Gr. SS304-A2 & SS316-A4
  • Lengths Available : 8mm to 64mm dia, & 100mm to 3000mm lengths

Threaded Anchor Rods are generally used in combination of Chemical Anchoring System either by Injected System or Chemical Capsule Anchors. Threaded Rods are also known in the industry as Anchor Rods, Stud Anchors and Threaded Anchor Rods. KTR is an acronym of KWIK Threaded Rod Threaded Anchor Rods are generally fully threaded along their complete length for use with Injection System of Chemical Anchors. The Threaded Rods used in conjunction with Chemical Anchoring System are subjected to Tensile, Shear, Bending Moments or Combination Loads. Also these anchors are generally subjected to a very high static and live Loads hence the Grade of the Steel plays a vital role in usage. Various grades of steel like 4.6, 5.8, 8.8, 10.9 and B7 which are manufactured with the Carbon Steel material whose mechanical properties meet or exceed the requirements set forth in the relevant harmonized standards.

  • Consistent pitch Diameter
  • Compatible Nut & Washer of various grades
  • Grade 5.8, 8.8, 10.9, B7 Stainless Steel A2 (SS304) & A4 (SS316)
  • Steel & wooden structural Beams & columns
  • Cantilevers, Pipe supports
  • Heavy Duty Fixings
  • Pumps, Machines
  • Mechanical Equipment’s
  • Guard rails, Gates
  • Insert plates
  • Heavy duty ladders

KTR - Anchor Threaded Rods (Steel Grade - 5.8, 8.8, 10.9, SS304-A2 & SS316-A4) Zinc Galvanized Steel With Nut & Washer

SR. No. Product Description Anchor Dia. Fastenable Thikness-tfix Embedment Depth-hef Total Length Box Qty.
(mm) (mm) (mm) (mm)
1. KTR M8 x 85 M8 5 60 85 50
2. KTR M8 x 110 M8 10 80 110 50
3. KTR M8 x 150 M8 50 80 150 50
4. KTR M10 x 90 M10 5 75 90 50
5. KTR M10 x 115 M10 5 90 115 50
6. KTR M10 x 150 M10 40 90 150 50
7. KTR M10 x 200 M10 90 90 200 25
8. KTR M12 x 120 M12 10 90 120 25
9. KTR M12 x 150 M12 20 110 150 25
10. KTR M12 x 200 M12 70 110 200 25
11. KTR M12 x 250 M12 120 110 250 10
12. KTR M12 x 300 M12 170 110 300 10
13. KTR M12 x 400 M12 270 110 400 10
14. KTR M16 x 150 M16 5 125 150 10
15. KTR M16 x 170 M16 20 125 170 10
16. KTR M16 x 200 M16 50 125 200 10
17. KTR M16 x 250 M16 100 125 250 10
18. KTR M16 x 300 M16 150 125 300 10
19. KTR M16 x 350 M16 200 125 350 10
20. KTR M16 x 500 M16 350 125 500 5
21. KTR M20 x 150 M20 10 110 150 5
22. KTR M20 x 200 M20 45 125 200 5
23. KTR M20 x 250 M20 50 170 250 5
24. KTR M20 x 300 M20 100 170 300 5
25. KTR M20 x 350 M20 150 170 350 5
26. KTR M20 x 500 M20 300 170 500 5
27. KTR M22 x 200 M22 20 150 200 5
28. KTR M22 x 300 M22 90 180 300 5
29. KTR M22 x 400 M22 190 180 400 5
30. KTR M24 x 200 M24 10 150 200 2
31. KTR M24 x 250 M24 60 150 250 5
32. KTR M24 x 300 M24 50 210 300 5
33. KTR M24 x 350 M24 100 210 350 5
34. KTR M24 x 450 M24 200 210 450 5
35. KTR M27 x 300 M27 20 240 300 5
36. KTR M27 x 400 M27 120 240 400 5
37. KTR M27 x 500 M27 220 240 500 5
38. KTR M30 x 350 M30 35 270 350 5
39. KTR M30 x 500 M30 185 270 500 5
40. KTR M33 x 400 M33 40 300 400 5
41. KTR M33 x 550 M33 190 300 550 5
42. KTR M36 x 550 M36 160 330 550 5
43. KTR M39 x 550 M39 130 360 550 5
44. KTR M39 x 1000 M39 580 360 1000 3
