- Anti-Sliding : The shape of the expander clip guarantees a high fastening capacity
- High Resistance : Achieved through the cold forging process
- Uniform Expansion : The special clip ensures an uniform distribution of pressure in the drilled hole

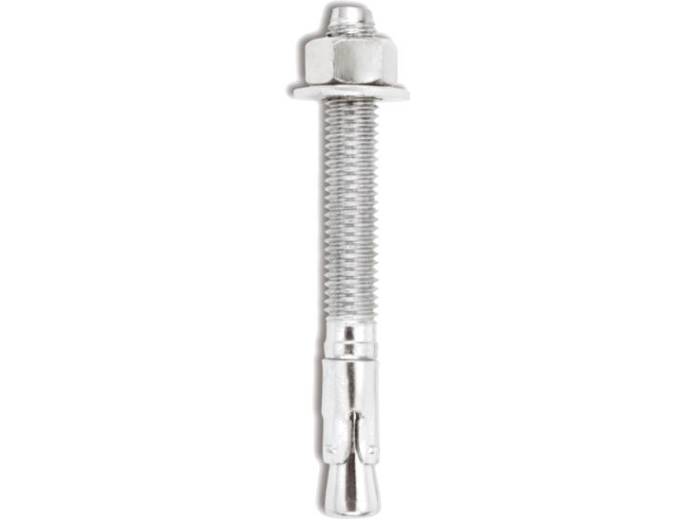

Heavy Duty Stainless Steel Through Anchor (KWIK KTB-SS-PRO)
KWIK KTB-SS-PRO is a heavy duty expansion anchor which is used for Higher tension loading applications. It is also called with different names like stud anchor, expansion anchor, wedge anchor. The anchor expansion clip guarantees high fastening capacity & high resistance with uniform distribution of pressure in the drilled hole. The anchor is of stainless steel body giving a higher corrosion resistance required for applications which are exposed to atmospheric corrosion.
- Heavy Duty Mechanical Anchor bolt for through fixings
- SS 304 grade (A2) anchors
- Cold Forged anchor body
- Hole diameter & anchor diameter is same
- Suitable in PCC, RCC & Rock
- Heavy Duty Fixings
- Hand Rails, Guard Rails
- Facade Brackets & Clamps
- Pipe Supports, Channels
- Warehousing Racks
- Stadium Seat Fastening
- Columns & Beams Fixing
- Consoles
- Cable Trays, Conduits
- Tunnels & Gates
- Mechanical Equipments
- Steel & wood constructions
- Wide range of Applications
- Reliable Fixing in Concrete & Rock
- High resistance Ductile
- Friction & Keying Effect
- Prevents the anchors from rotating
- Uniform distribution in the hole
- Solid Stone
- Concrete
KTB-SS-PRO – Through Bolt (Stainless Steel SS304 – A2 grade with Nut & Washer)
| SR. No. | Product Description | Anchor Dia. | Fastenable Thikness-tfix | Embedment Depth-hef | Total Length | Box Qty. |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | |||
| 1. | KTB-PRO M8x75 | M8 | 15 | 40 | 75 | 100 |
| 2. | KTB-PRO M8x100 | M8 | 45 | 40 | 100 | 100 |
| 3. | KTB-PRO M10x75 | M10 | 5 | 50 | 75 | 50 |
| 4. | KTB-PRO M10x100 | M10 | 20 | 60 | 100 | 50 |
| 5. | KTB-PRO M12x100 | M12 | 10 | 70 | 100 | 25 |
| 6. | KTB-PRO M12x125 | M12 | 35 | 70 | 125 | 25 |
