Chemical Anchoring

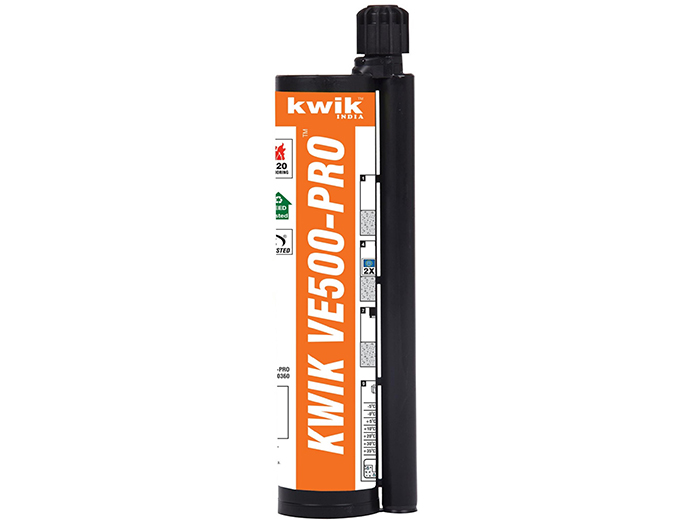

Vinylester Chemical Anchor (KWIK VE500-PRO)

Vinylester chemical anchor, approved for almost any application and base material.

Approved for seismic loads according to category C1.

Approved temperature range of 120°C and a fast curing time for high loads.

Suitable for use in rotary hammer drilled holes, water filled holes, for overhead applications and embedment depths of ≥4xØ – 20xØ.

  • Article No : KITVE0360
  • Content : 360ml
  • Colour of Mortar : Grey
  • Gelling Time : 4 mins at 30°C
  • Curing Time : 25 mins at 30°C
  • Shelf Life : 18 months
  • ETA CE Certified – Option 1 : Can be used in Cracked & Un-Cracked Concrete
  • Hard Plastic Body : Protects from transportation damages & material handling
  • Sizes Available : 360ml Cartridge
  • Air Tight Cap : Stop-n-go applications for repeated use.

KWIK VE500-PRO is a Vinylester based chemical anchor is designed especially for the Construction Industry. Few applications of KWIK VE500-PRO including anchoring of threaded rods, reinforcing bars or internal threaded rod sleeves into concrete (normal, porous & light) as well as solid masonry. KWIK VE500-PRO being Vinylester based resin mortar is used in hammer drilled holes and are suitable for extreme loads. The system is based on adhesion principle. The resulting bond is stronger to the base material, no additional load stress is imparted to the base material in comparison with expansion type anchors and are therefore ideal for close to edge fixing, reduced centre, group anchoring. Installation Temperature of KWIK VE500-PRO from -5°C and a service Temperature up to 72°C. KWIK VE500-PRO has high chemical resistance and is suitable for applications in extreme ambiences e.g. in swimming pools (chlorine) or closeness to the sea (salt). The product is supported with several international approvals which prove it’s capability in nearly every application.

  • Fast Setting & Curing
  • Heavy Duty Vinylester Chemical Anchor
  • Vinylester Based Chemical
  • Suitability – All Base Materials
  • Styrene free Chemical
  • Thixotropic
  • ETA Option 1 Certification
  • Rebar Fixings
  • Steel & Wooden Structural Beams & Columns
  • Cantilevers, Pipe Supports
  • Pumps, Machines
  •  Guard rails, Gates
  • Heavy duty ladders
  • Mechanical Equipment’s
  • Heavy Duty Fixings
  • Percussion / Rotary Hammer drilled holes
  • Dry / Moist holes
  • Suitable for winter, cold application
  • High loads & safe Chemical Anchoring
  • Excellent Bonding & Low Shrinkage
  • Wide range of construction Base Materials
  • Low odour, Low emissions
  • Resists to most industrial Chemicals
  • Concrete
  • Cracked Concrete
  • Solid Brick
  • Light Weight Honeycomb Brick
  • Hollow Dense Aggregate Brick
  • Hollow Light Aggregate Brick
  • Solid Stone
  • Aerated concrete
