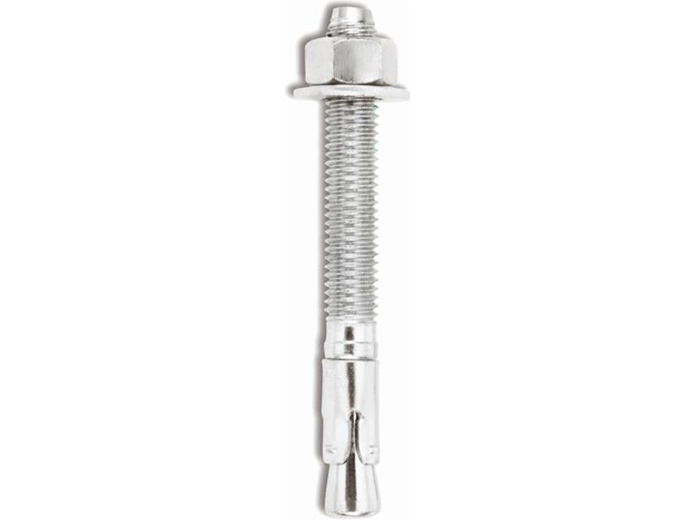

Through Bolt / Wedge Anchor (KWIK KTB-PRO)

Torque-controlled expansion anchor offers immediate loading.

Carbon steel with minimum 5µm zinc coating.

Heavy Duty Through Anchor for Concrete.

Ideal for fixings in Passenger Hoists, Pipe Supports, Façade Brackets & Clamps, Columns & Beams, Conduits, etc.

Single piece clip design for consistent performance in high and low strength concrete.

service-img
  • Anti-Sliding : The shape of the expander clip guarantees a high fastening capacity
  • High Resistance : Achieved through the cold forging process
  • Uniform Expansion : The special clip ensures an uniform distribution of pressure in the drilled hole

KWIK KTB-PRO is a heavy duty expansion anchor which is used for Higher tension loading applications. It is also called with different names like stud anchor, expansion anchor, wedge anchor. The anchor expansion clip guarantees high fastening capacity & high resistance with uniform distribution of pressure in the drilled hole. The anchor is coated with white zinc plating giving a normal corrosion resistance required for most of the applications.

  • Heavy Duty Mechanical Anchor bolt for through fixings
  • 5 micron white zinc plated anchors
  • Cold Forged anchor body
  • Hole diameter & anchor diameter is same
  • Suitable in PCC, RCC & Rock
  • Heavy Duty Fixings
  • Hand Rails, Guard Rails
  • Facade Brackets & Clamps
  • Pipe Supports, Channels
  • Warehousing Racks
  • Stadium Seat Fastening
  • Columns & Beams Fixing
  • Consoles
  • Cable Trays, Conduits
  • Tunnels & Gates
  • Mechanical Equipments
  • Steel & wood constructions
  • Wide range of Applications
  • Reliable Fixing in Concrete & Rock
  • High resistance Ductile
  • Friction & Keying Effect
  • Prevents the anchors from rotating
  • Uniform distribution in the hole
  • Solid Stone
  • Concrete

KTB-PRO – Through Bolt (White Zinc Plated with Nut & Washer)

SR. No. Product Description Anchor Dia. Fastenable Thikness-tfix Embedment Depth-hef Total Length Box Qty.
(mm) (mm) (mm) (mm)
1. KTB-PRO M6x75 M6 20 40 75 100
2. KTB-PRO M8x75 M8 15 40 75 100
3. KTB-PRO M8x100 M8 45 40 100 100
4. KTB-PRO M10x75 M10 5 50 75 50
5. KTB-PRO M10x100 M10 20 60 100 50
6. KTB-PRO M10x125 M10 45 60 125 50
7. KTB-PRO M10x150 M10 70 60 150 50
8. KTB-PRO M12x75 M12 5 50 75 50
9. KTB-PRO M12x100 M12 10 70 100 25
10. KTB-PRO M12x125 M12 35 70 125 25
11. KTB-PRO M12x150 M12 60 70 150 25
12. KTB-PRO M12x200 M12 110 70 200 25
13. KTB-PRO M16x100 M16 5 70 100 20
14. KTB-PRO M16x125 M16 20 80 125 20
15. KTB-PRO M16x150 M16 25 100 150 20
16. KTB-PRO M16x200 M16 75 100 200 20
17. KTB-PRO M16x250 M16 125 100 250 20
18. KTB-PRO M20x150 M20 15 100 150 20
19. KTB-PRO M20x200 M20 55 110 200 10
20. KTB-PRO M20x250 M20 105 110 250 10
21. KTB-PRO M24x150 M24 10 100 150 10
22. KTB-PRO M24x200 M24 30 125 200 10
23. KTB-PRO M24x300 M24 130 125 300 10
